135S Battery Pack BMS Solution , 432V 160A Battery Management Systems

Brand Name : GCE

Model Number : RBMS07S23-160A432V

Certification : CE/RoHS/UN38.3/MSDS

Place of Origin : china

MOQ : 2

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000+pcs+1 month

Delivery Time : 8-15 days

Packaging Details : Corrugated Carton,685*560*200mm

Material : Iron

color : black

Communication : CAN, RS485

Warranty : 3 years

Application : Solar, Wind, UPS, EV Car,Home Appliances,Boats,Energy storage system

Contact Now

GCE BMS 135S 432V 160A battery management systems products developed for large-scale high-voltage battery energy storage system

- 432V160Amp

Communication protocol:
Rs485, CAN, LAN, dry contact

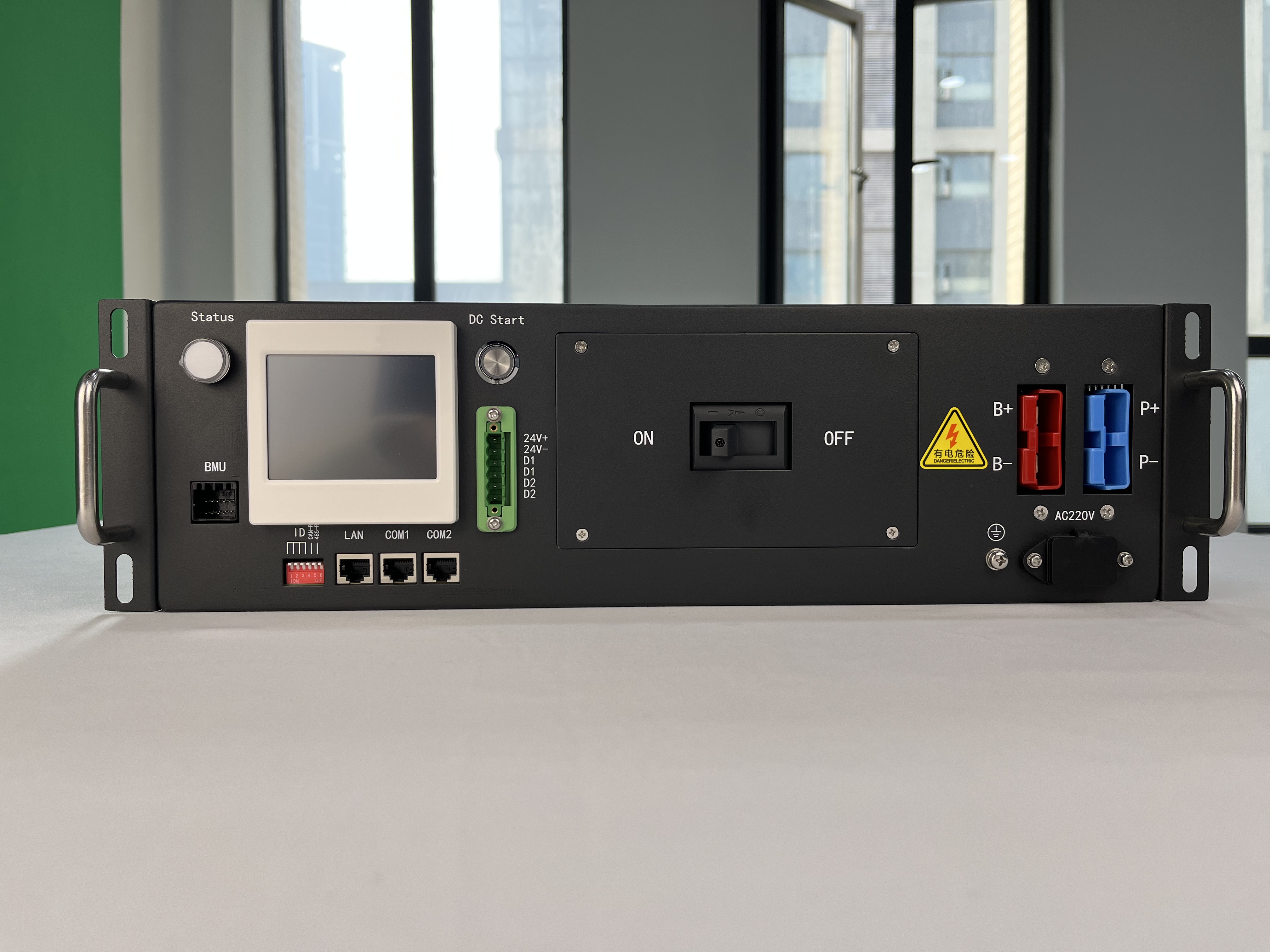

* 3U standard 19inch case * Efficient, stable and reliable * size:W440*H133*D500mm

135S Battery Pack BMS Solution , 432V 160A Battery Management Systems

Accessories

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
  supply,consumption less 20mA, CAN2.0 B communication

Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture sensor wire: standard length is 600mm,900mm,1200mm
  Fan wire: 600mm

Wire harness-communication wire

Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance

Specification

Product Name	BMS
Model no.	RBMS07S2-3-160A432V
protecting method	MCCB+Contactor
Rated Current range	-160A~160A
Voltage Range	0V-432V
Current Sampling Accuracy	1.0%FSR
Communication interface with PCS	RS485/CAN
Communication interface with BMU	CAN
Communication interface with SBMS	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	Yes(Optional)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	Up to 3
Maximum qty of BMUs	13
Power	24VDC(18~28V)
Power consumption	≤20W
Size(WHD)mm	3U (440133500)
Way out	Front
Mid-line	Not support
Tap center	Not support
Net weight	17kg
